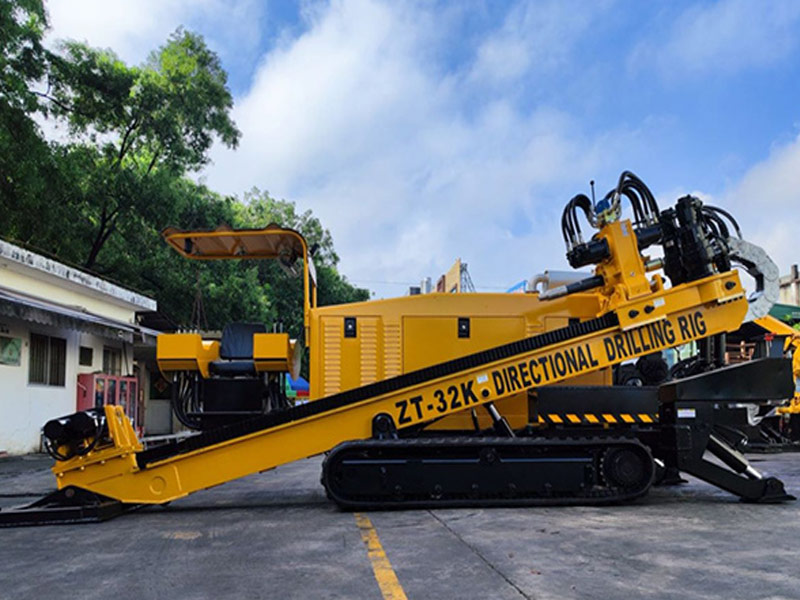

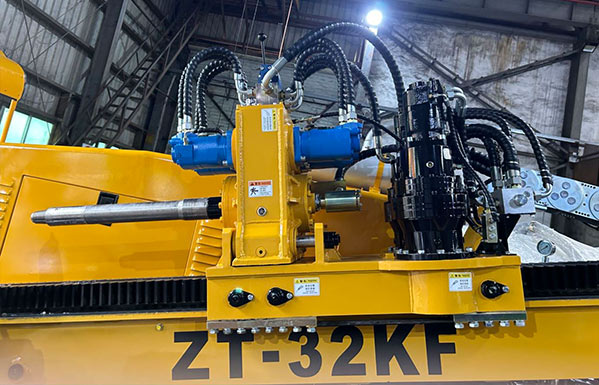

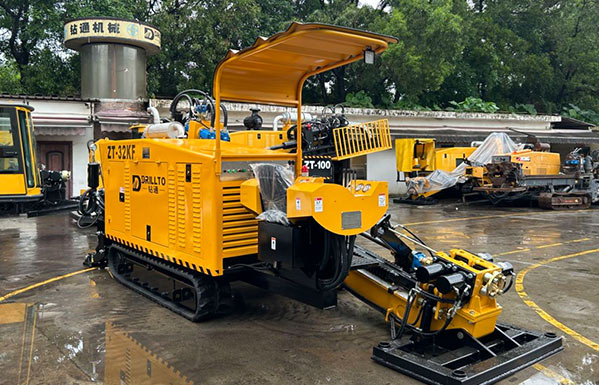

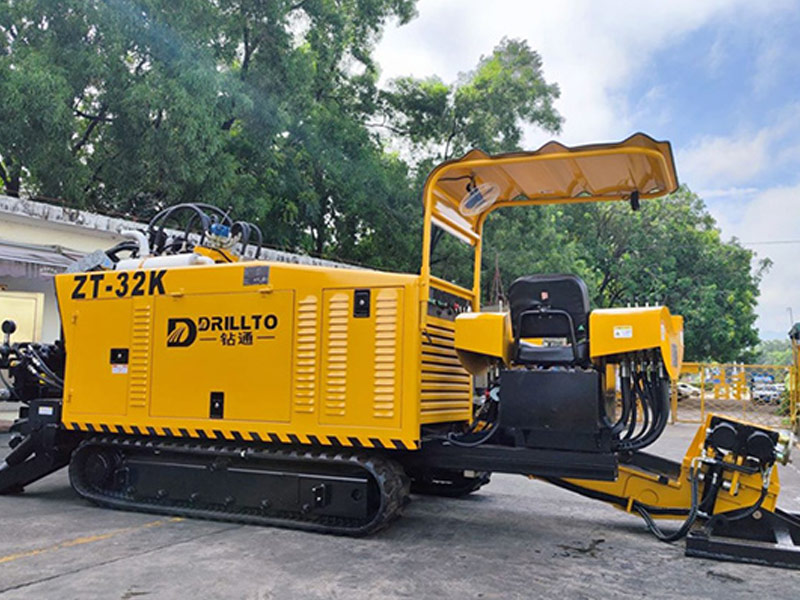

ZT-32KF Directional Boring Equipment

The ZT-32KF Directional Boring Equipment is a high-performance, compact HDD machine designed for small-to-medium trenchless construction projects. With advanced imported components, semi-automatic operation, and ergonomic design, this directional boring equipment delivers reliable performance, labor savings, and flexible deployment — ideal for urban pipeline laying, garden irrigation, and narrow-space construction.

Core Performance & Key Features

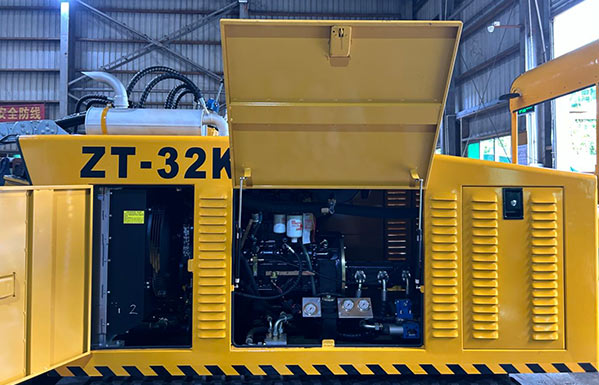

• Powerful & Reliable Drive: 153kW Cummins engine (2200rpm) + dual-motor drive, 12000N·m max torque, 0-145rpm rotation speed — strong power, stable operation, and low fuel consumption.
• Efficient Operation: 320KN max pulling/thrusting force, 0-50m/min pulling speed; semi-automatic arm swing + robotic arm — improves construction efficiency by 30%, saves labor costs significantly.
• Top-Tier Hydraulic System: Imported PERMCO/Pomke triple main pump, Italian SANT two-speed valve (patented parallel technology) — stable performance, strong control, and excellent sealing.
• User-Friendly Design: Rotatable ergonomic cab, adjustable high-quality seat (wider vision); wavy rain awning + fan + lighting — comfortable operation in all conditions.

Unique Advantages

• Space-Saving Design: Close-to-ground entry angle (8-20°) — saves drill rods and working space, suitable for narrow urban areas.
• Durable & Low-Maintenance: Key components are imported or joint-venture products; flange-type/clamp-type joints with good sealing — reduces failure rate, extends service life.
• Flexible Adaptability: 250/320L/min adjustable mud pump displacement, φ200-800mm reamer compatibility — adapts to diverse soil and pipeline size requirements.

Why Choose ZT-32KF Directional Boring Equipment?

• Compact & Portable: 8.5t weight + small dimensions, easy to transport and deploy in limited spaces.
• Cost-Effective: Semi-automatic operation reduces labor demand; imported components lower maintenance costs.
• Reliable Performance: Cummins engine + patented hydraulic technology, meets international advanced standards for stability and efficiency.

Invest in the ZT-32KF Directional Boring Equipment for efficient, labor-saving, and reliable trenchless construction. Contact us for a quote or technical support!
